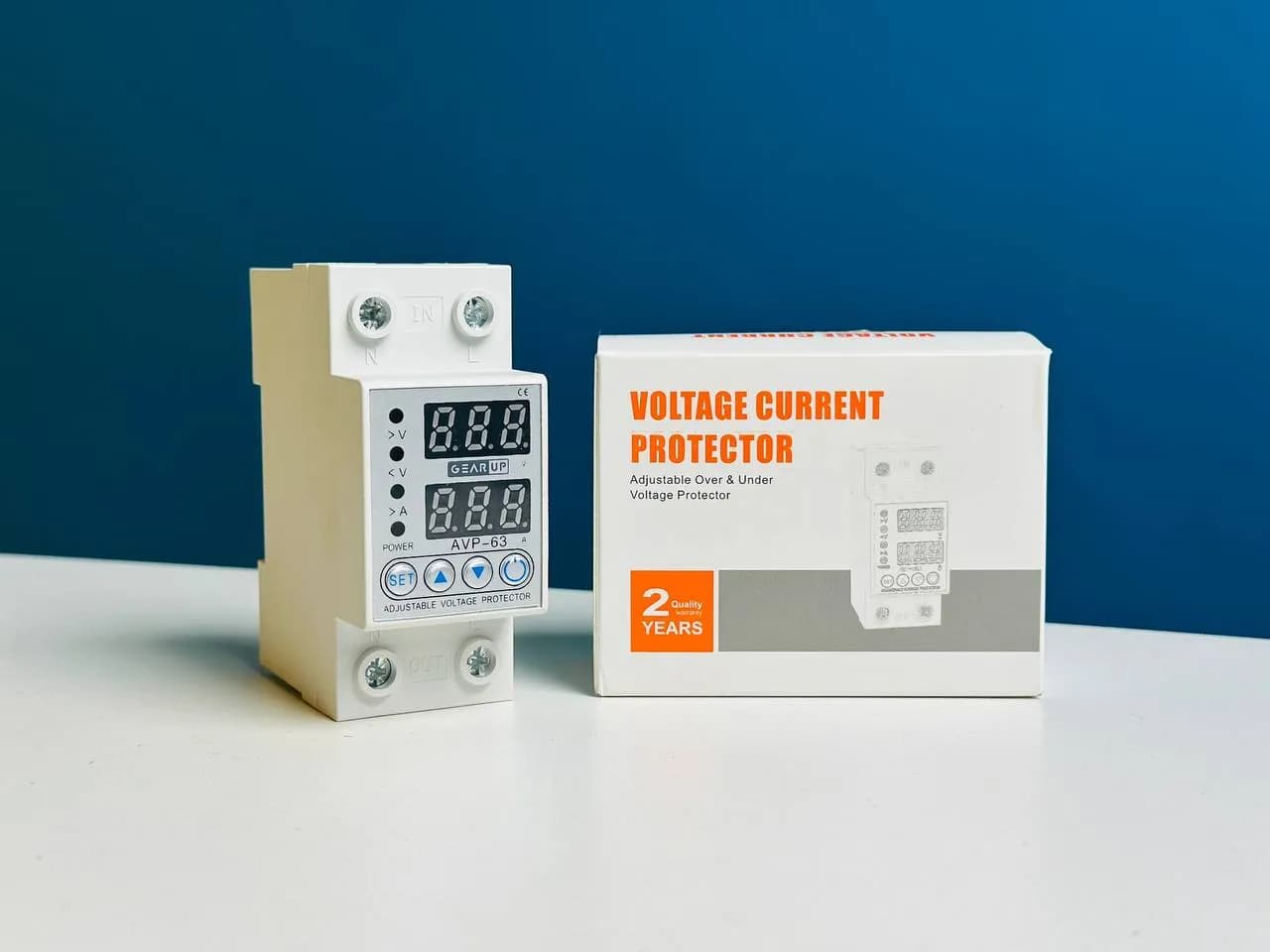

GearUP AVP-63 Automatic Voltage Protector in Bangladesh
Get The GearUP AVP-63 Automatic Voltage Protector-220V at Pixio Enjoy top quality and unbeatable prices with the best customer service in Bangladesh
Key Functions
- Protection Features
- Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).
- Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).
- Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).
- Automatic Recovery: Restores power after fault conditions (adjustable via P-15).
- Fast Power-Down: Emergency cutoff (enabled via P-14).
- Monitoring & Display
- Real-time voltage display (AC/DC).
- Real-time current display (AC only; DC mode shows voltage only).
- Indicators for faults (>V, <V, >A) and normal operation (POWER).
- Programmable Settings
- Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
- Password protection (P-17) to prevent unauthorized changes.
2. Technical Specifications
| Category |
Details |
| Power Supply |
AC: 320V / DC: 80–300V |
| Frequency |
50/60Hz (AC only) |
| Voltage Range |
AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating) |
| Max Current |
40A/63A (configurable) |
| Accuracy |
Voltage: <1% |
| Response Time |
Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10) |
| Environmental |
-25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C) |
| Physical |
512 × 960mm, 15kg |
3. Setup & Operation Guide
A. Initial Configuration
- Power Connection:
- Wire terminals (N-L) to AC/DC source within rated limits.
- Menu Navigation:
- Use front-panel buttons to adjust parameters (P-1 to P-17).
B. Critical Settings
| Parameter |
Purpose |
Default |
Range |
| P-3/P-5 |
Over/under-voltage thresholds |
300V/80V |
AC: 80–300V / DC: 130–300V |
| P-9 |
Max current limit |
63A |
14–63A |
| P-15 |
Auto-recovery after fault |
ON |
ON/OFF |
| P-17 |
Password lock |
000 |
000–999 |
C. Calibration
- Voltage: Adjust via P-8 (±10%).
- Current: Calibrate with P-12 (±10%).
- Frequency (AC only): Fine-tune with P-13 (±2.5%).
D. Safety & Recovery
- Manual Reset: Required if auto-recovery (P-15) is disabled.
- Event Logging: Overcurrent counts (P-11) track fault history.
4. Usage Notes
- DC Mode: Current display disabled; only voltage monitored.
- Energy Saving: Enable P-16 to reduce idle power consumption.
- Altitude Warning: Performance may degrade above 2000m.
Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
