GearUP DC PV Combiner Box in Bangladesh
Get the GearUP 8-Way DC PV Combiner Box in Bangladesh at Pixio. Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

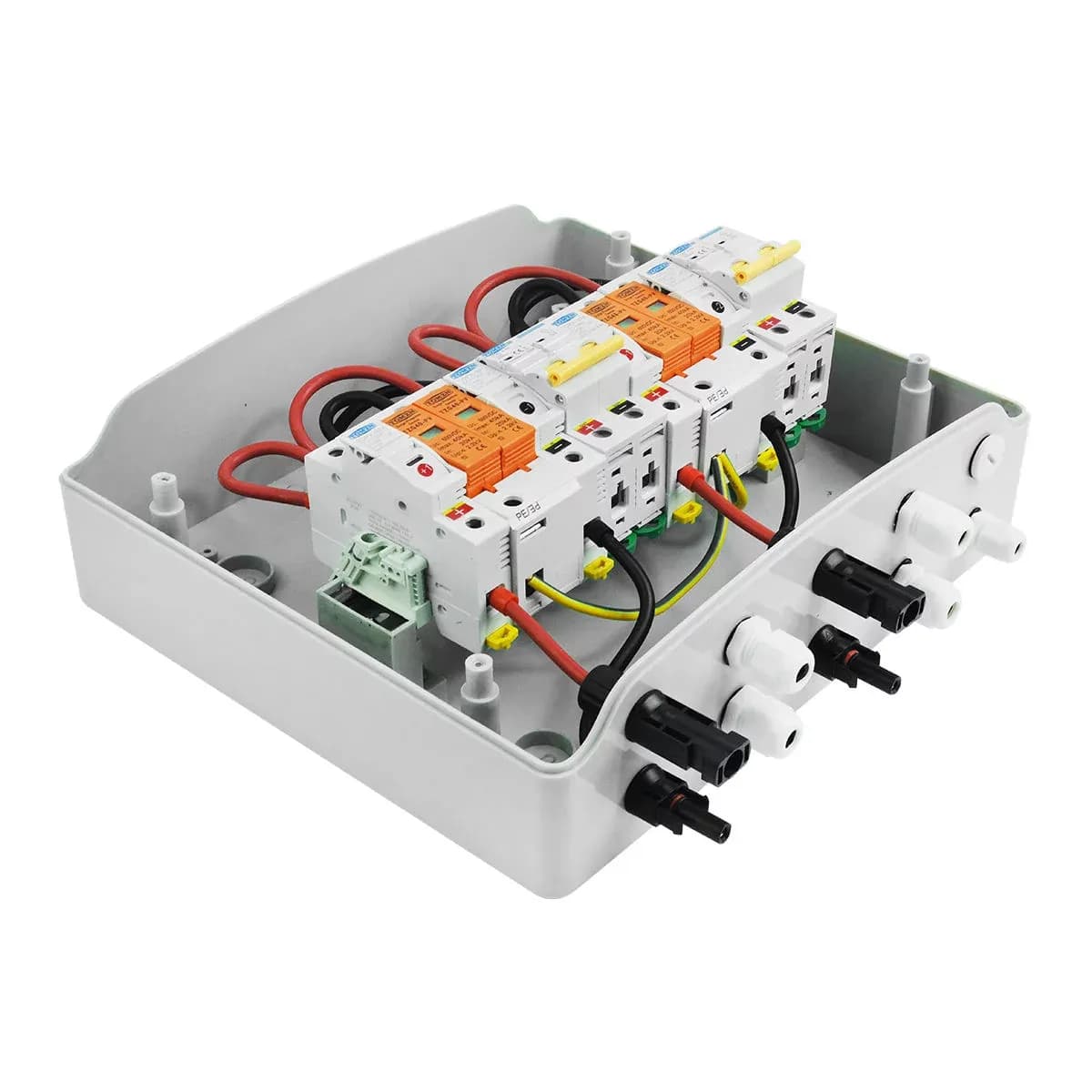

The GearUP 8-Way DC PV Combiner Box is designed for reliable solar power system integration. It combines DC inputs from up to 8 solar panel strings into a single output, featuring built-in protection components including Miniature Circuit Breakers (MCB), fuses, and Surge Protection Devices (SPD). Its IP65-rated waterproof enclosure ensures durability in outdoor environments. Ideal for residential and commercial solar installations, this combiner box enhances system safety and efficiency.
Key Description:
- Combines up to 8 solar panel strings into a single DC output
- Integrated 2-pole DC MCB and fuse protection for each string
- Type 2 SPD safeguards against voltage surges caused by lightning or switching
- IP65-rated, weather-resistant enclosure suitable for indoor and outdoor use
- Compatible with MC4 connectors and standard solar cables
Features & Specifications:
- Strings Supported: 8 In / 1 Out
- DC Voltage Rating: Up to 600V DC
- DC MCB: 2-pole, rated for overcurrent protection
- Fuse Holder: 600V DC, 10x38mm fuse link for each string
- Surge Protection Device: Type 2, 600V DC surge handling
- Enclosure: IP65 waterproof, UV resistant, made of fire-retardant ABS/Polycarbonate
- Operating Temperature: -25°C to +60°C
- Mounting: Wall or panel mount with included brackets
- Cable Entry: PG glands and MC4-compatible ports
Benefits:
- Ensures safe and reliable connection of multiple solar panel strings
- Prevents damage from overcurrent and short circuits with resettable MCBs and quick-replace fuses
- Protects sensitive solar equipment from voltage spikes using SPD
- Durable waterproof design suitable for harsh weather conditions
- Simplifies solar system wiring and maintenance
Pros:
- High-quality protection components integrated
- Weatherproof and UV-resistant enclosure for outdoor use
- Easy to install and maintain with wall or panel mounting options
- Compatible with common solar connectors and cables
- Compact design saves space in solar installations
Cons:
- Limited to 8 input strings, may not suit very large solar arrays
- Requires basic electrical knowledge for installation and maintenance
- SPD protects against Type 2 surges but may need additional protection for extreme conditions

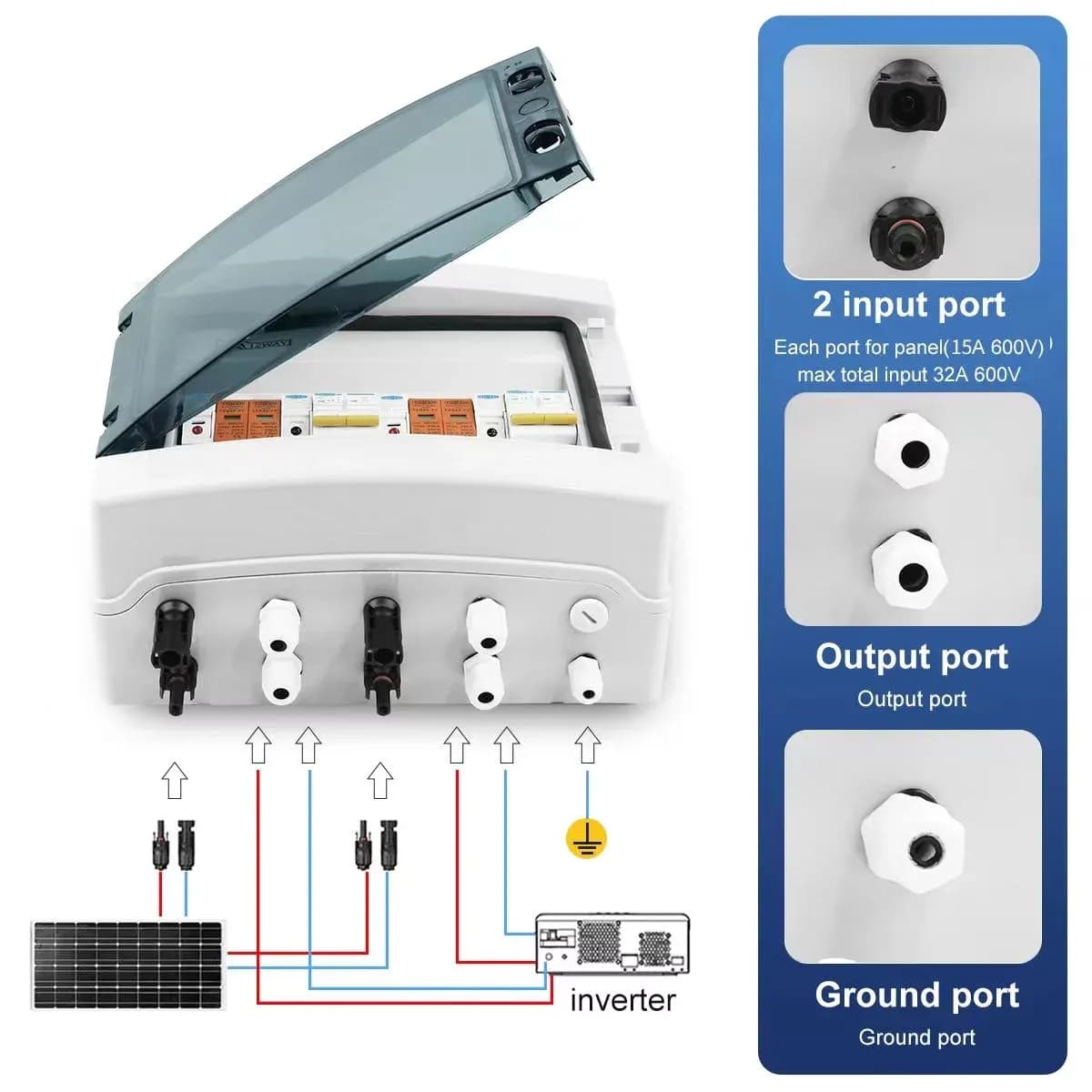

How It Works:
- Solar Panel DC output (1 string) is connected to the combiner box.
- The DC power flows through the fuse, then through the MCB, and finally through the SPD.
- The SPD protects the system by diverting sudden voltage spikes to ground.
- The combined and protected output is then sent to the inverter/charge controller.
