GearUP 12-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof)
à§³9,350
Share:
Hurry! Over 24 people have this in their carts
SKU: 12Way-PV BoxCategory: Combiner Box, New Arrival
Product Overview
GearUP DC PV Combiner Box in Bangladesh
Get the GearUP DC PV Combiner Box 12 Way in Bangladesh at Pixio. Enjoy top quality and unbeatable prices with the best customer service in Bangladesh
The 12-Way 2 Strings DC Solar PV Combiner Box is designed to combine and manage up to 12 solar panels in two separate strings for safe, efficient, and organized DC power distribution. Equipped with MCB, DC fuses, and Type II SPD, it ensures maximum protection against overcurrent, short circuits, and voltage surges. Built with an IP65 waterproof enclosure, this combiner box is ideal for residential, commercial, and off-grid solar installations using dual MPPT inverters.
Features
12-Way Design – Supports up to 12 solar panels in 2 separate strings (6 panels each) for optimal power management.

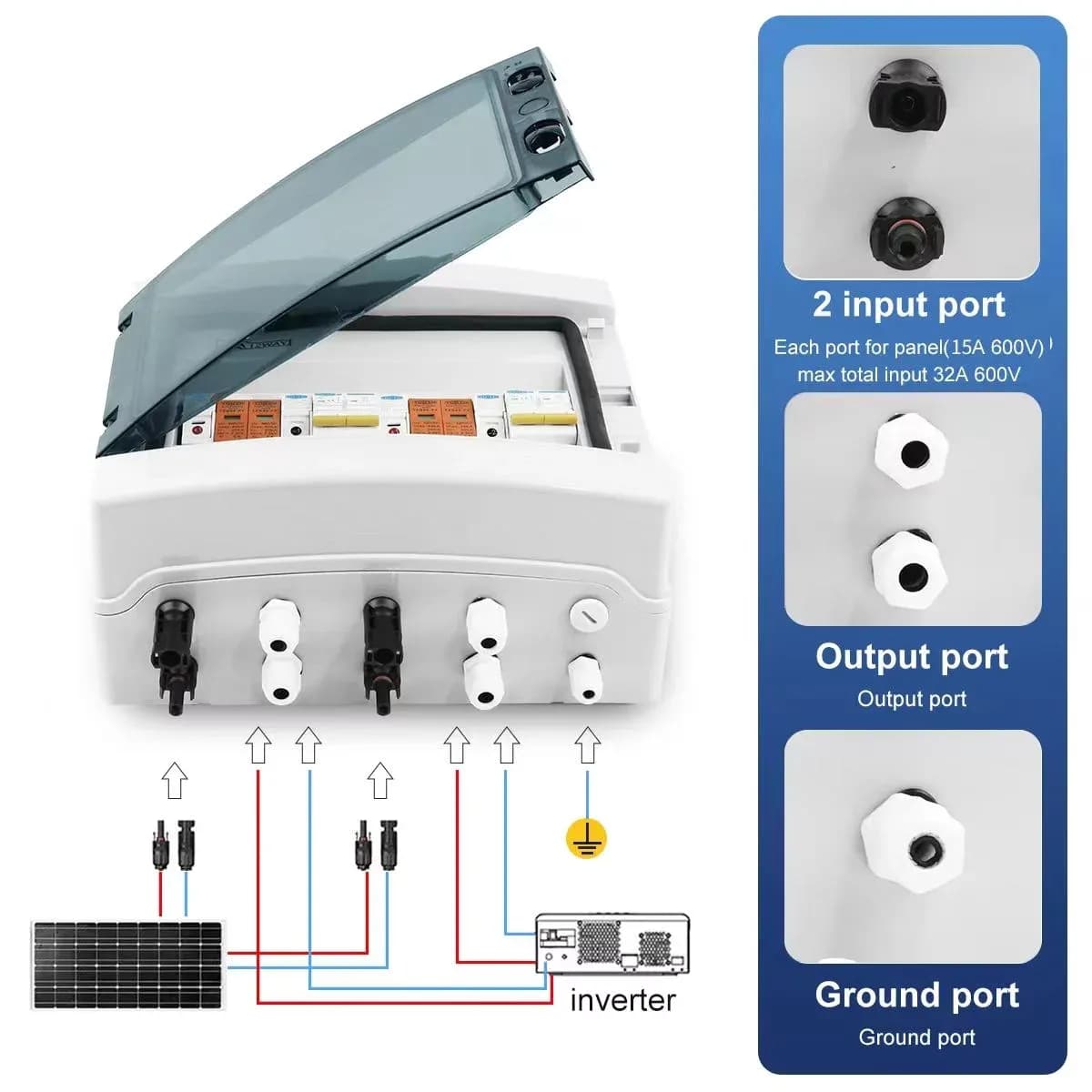

2 Strings In, 2 Strings Out – Dual independent channels for flexible system configuration with dual MPPT inverters.
Comprehensive Protection – Includes MCB for overcurrent protection, fuses for string-level safety, and SPD for surge protection.
IP65 Waterproof Enclosure – Dustproof, waterproof, UV-resistant, and flame-retardant ABS/polycarbonate housing for outdoor durability.

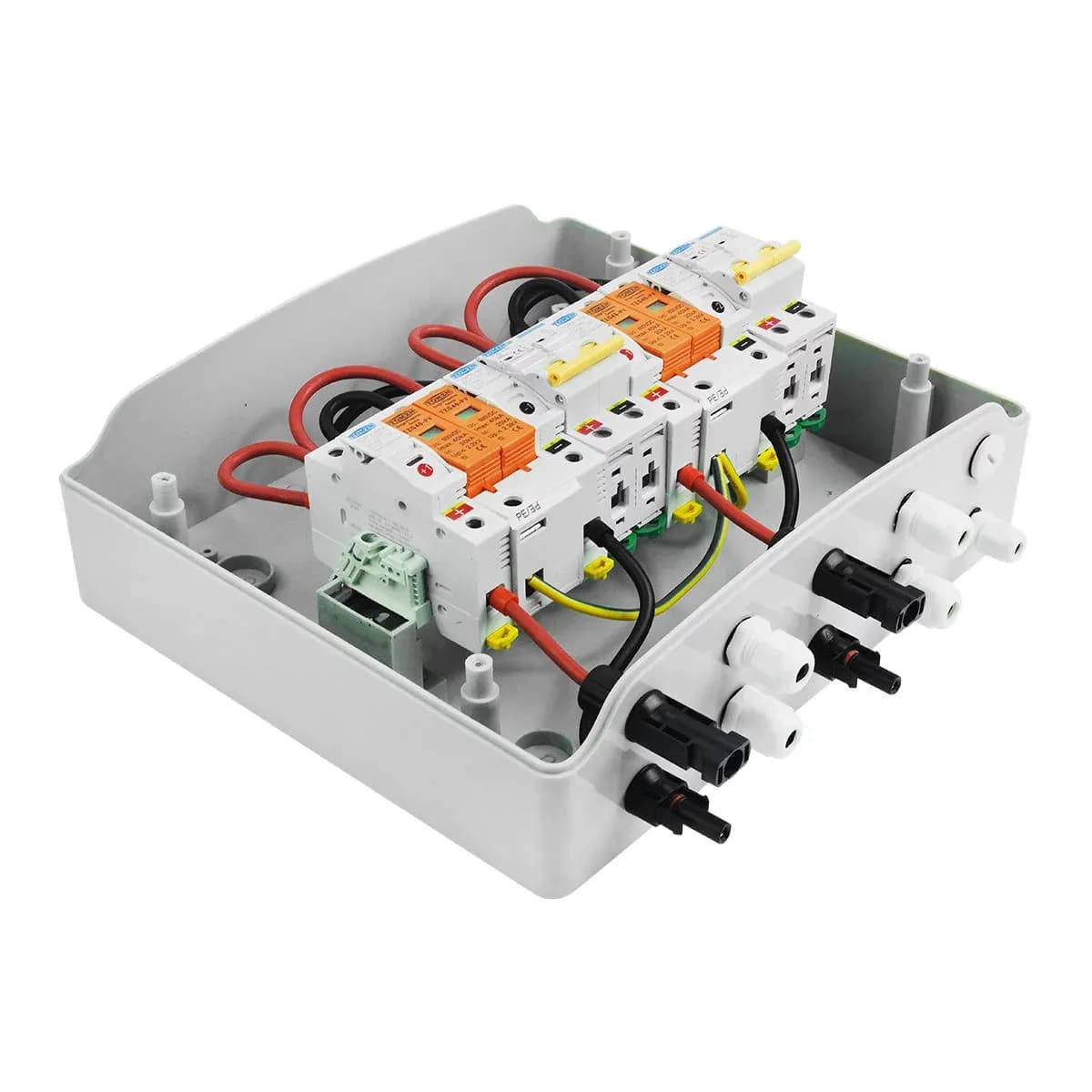

Easy Installation – Pre-wired with labeled terminals, UV-resistant cable glands, and an internal DIN rail for neat wiring.
Enhanced Safety – Quick isolation and disconnection reduce arc faults, short circuits, and potential failures.
Wide Compatibility – Works with most solar inverters including Growatt, Deye, SMA, Solis, and more.
Specifications
Input Strings: 2 strings (6 panels per string)
Output: 2 outputs (dual MPPT inverter compatible)
Voltage Rating: 600V DC
Current Per String: 30A (fuse-dependent)
MCB Rating: 63A
SPD Type: Type II DC SPD
Enclosure Rating: IP65 waterproof, outdoor-rated
Mounting Options: Wall mount or pole mount
Cable Glands: UV-resistant PG glands
Benefits
Safe and efficient solar panel power management.
Protects equipment from overcurrent, short circuits, and voltage surges.
Extends the lifespan of your solar power system.
Supports flexible configurations with dual MPPT inverters.
Designed for long-term outdoor use.
Pros
High safety protection with MCB, fuses, and SPD.
Weatherproof and UV-resistant for outdoor installations.
Compatible with multiple inverter brands.
Pre-wired for quick and easy installation.
Cons
Limited to 600V DC rating (1000V model may be needed for larger systems).
Requires professional installation for optimal performance.
Packaging Contents
1 x 12-Way 2 Strings DC Solar PV Combiner Box
Pre-installed MCB, DC fuses, and SPD
UV-resistant cable glands
User manual and installation guide
Product Overview This 12-Way 2 Strings DC Solar PV Combiner Box is the perfect solution for safe and organized DC power distribution in solar systems. With its dual input-output design, it’s ideal for setups with dual MPPT inverters. The unit’s comprehensive protection system guards against overcurrent, surges, and short circuits, ensuring maximum reliability and safety. Built for outdoor environments, the IP65-rated enclosure resists dust, water, UV damage, and high temperatures, making it a dependable choice for residential rooftops, small commercial setups, and hybrid or off-grid systems.
